Navy Evo
Navy Evo covers more miles – powerful, long range electric outboards
Go further for longer
The ePropulsion Navy Evo 3.0 and 6.0 are long range electric outboards, capable of powering larger displacement boats at faster speeds over greater distances.
A2.5 ton boat will be comfortably powered by the robust Navy Evo 3.0 motor
The Navy 6.0 electric outboards are ideal for a displacement boat up to 5 tonnes.
Electric outboards for larger boats
Powered by a choice of three different sizes of separate 48v rechargeable batteries, you’ll have clean, quiet, and environmentally friendly propulsion.
Far smaller and lighter than their equivalent in fuel tanks, these waterproof, rechargeable batteries mean no engine noise, no oily bilges and no grease or fuel fumes on board either.
Lightweight and compact, the motors are easy to lift, transport and store ashore or onboard.
The efficient direct drive propulsion means few moving parts, and no maintenance or servicing either.
Interchangeable between boats, these long range electric outboards are suitable for:
- yacht tenders and dinghies
- aluminium fishing boats
- SIBs (small inflatable boats)
- RIBs (rigid inflatable boats)
- motor boats
- day sailers
- yachts up to 5 tons
Choose between your long range electric outboards

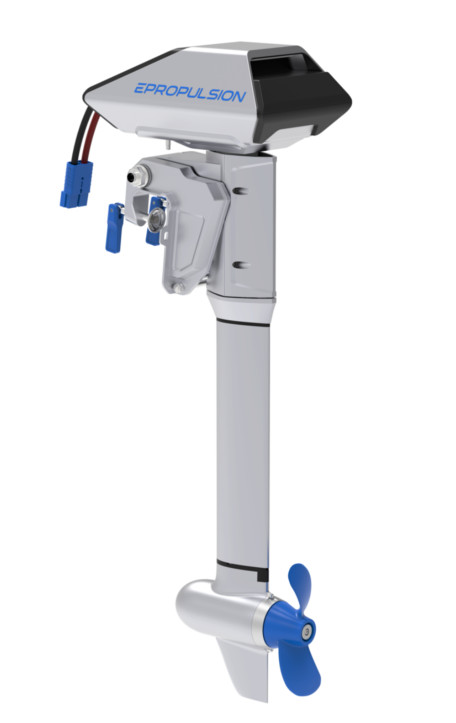

Navy 3.0 Evo
Power: 3 kW / 6 hp
Operation voltage: 48 V
Max current draw: 62.5 A
Outboard weight:* 21.7 kg
*short shaft version
Range – low speed: 300 Watts
Speed: 6 kph
Runtime: 13:20 hr:mm
Range: 79 km
Range – full throttle: 3000 watts
Speed:16.4kph
Run time: 1:20 hr:mm
Range: 21.9 km
Performance data: 12′ aluminum boat, one person, Navy 3.0 Evo, one E80 battery, calm lake
Navy 6.0 Evo
Power: 6 kW / 9.9 hp
Operation voltage: 48 V
Max current draw: 125 A
Outboard Weight:* 27.8 kg
*short shaft version
Range – low speed: 500 watts
Speed: 6.5 kph
Run time: 18:00 hr:mm
Range: 116 km
Range – full throttle: 6000 watts
Speed: 24.3kph
Run time:1:30 hr:mm
Range: 36.5 km
Performance data: 12′ aluminium boat, one person, Navy 6.0 Evo, one E175 battery, calm lake.
Choose your control options
Evo Tiller
- stepless forward & reverse speed and heading control
- 105° rotatable grip for excellent manoeuvrability
- LED screen read out – range, speed, time & energy consumption
Top Mount control
- remote controller with forward/reverse speed
- console mounted control
Side Mount control
- 3.2″ real time display
- mounted easily in any cockpit
- ideal for sailing & motor boats
- sleek, low clutter
Dual Control
- console mounted
- remote control

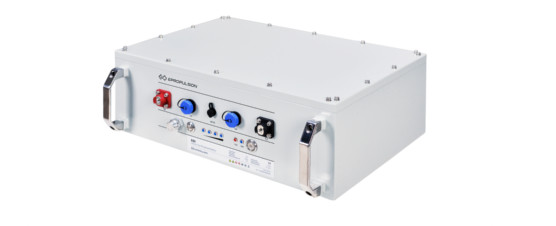

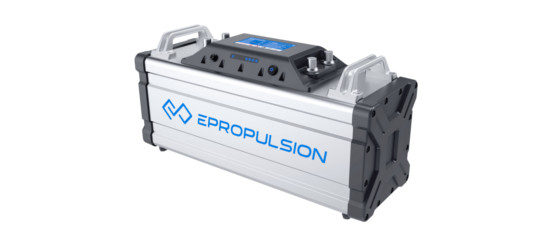

Choose your battery options
- high energy density
- 70% less weight and space than standard lead-acid batteries
- longer life cycles – 3000 cycles at 80% DOD
E4- 2kWh
Charging time:
10A Charger: 5 hrs
20A Charger: 2.5 hrs
Weight: 28 kg
Size:
42 x 39 x 20.7 cm
16.5 × 15.4 × 8.2 inches
E80 – 4kWh
Charging time:
20A Charger: 5 hrs
40A Charger: 2.5 hrs
Weight: 48 kg
Size:
55.5 × 44 × 21.2 cm
21.9 × 17.3 × 8.4 inches
E175 – 9kWh
Charging time:
20A Charger: 9 hrs /
40A Charger: 5 hrs
Weight: 87 kg
Size:
50 × 56.5 × 27.7 cm
19.7 × 22.2 × 10.9 inches
Navy Evo electric outboards – key features
Digital Display
- real-time monitoring power, runtime, battery level, voltage, etc.
Electric Start
- effortless press button start
Magnetic Kill Switch
- an emergency stop safety key for ePropulsion electric outboards
Smooth Throttle Changing
- excellent throttle response and clear throttle hand feel.
Adjustable Max Power Output
- full throttle power is adjustable
- child-friendly and ideal for rental boats
Left-handed Friendly
- set either clockwise or anti-clockwise rotation for forward propulsion
Safety Wristband – easy-to-use and additional safety:
- man overboard protection
- wireless connection
- waterproof IP67
- max connection up to 8 wristbands per motor
- safety wristband works with Evo Tiller and Evo top mount control only.
(Note – not compatible with Evo side mount control or Evo dual control).
